商品の詳細:
|
| 原材料: | 砂、セメント、ギプス、等 | 適用する: | 乾燥粉末の混合 |
|---|---|---|---|
| 容量: | 10〜30t/h | 色: | 灰色/白く/青いですまたはカスタマイズされる |
| パワー: | 83kW | サイズ: | 8000*8000*8000mm |
| 労働者: | 3-4人 | 公式: | 提供 |
| 混ぜる時間: | 3-5 分/パッチ | パッキング機械: | バルブポートパッキングマシン |
| ハイライト: | タイルアレッシブドライモルタル生産ライン,ウォールパットドライモルタル生産ライン,オートマティック ドライモルタル 生産ライン |
||

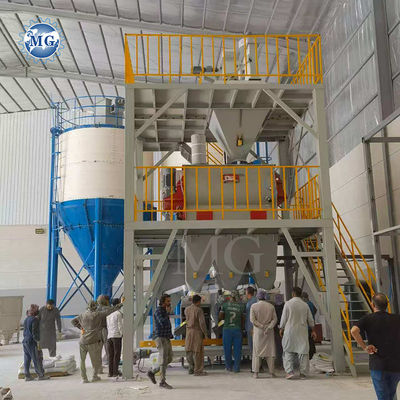

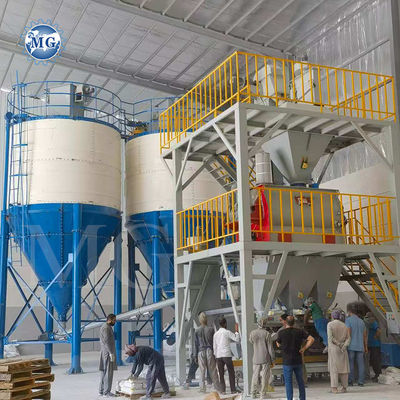

1. Description of Automatic Weighing Dry Mortar Mixing Plant.
This production line adopted latest Germany Technology, the silo is in tower type,and latest management system is applied in automatic control,improved the man-friendly operation in large extent.The capacity of this automatic dry mortar production line can reach 10-80 T/H.

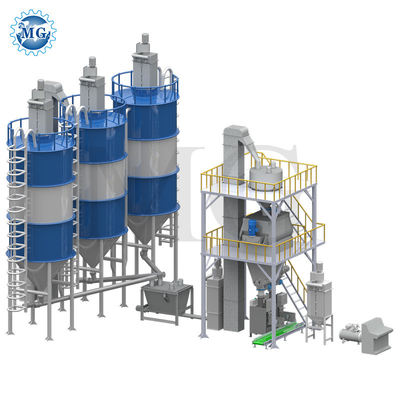

2. Product Configuration of Automatic Weighing Dry Mortar Mixing Plant.
| Model | Capacity | Equipment height | Total power | Worker required | Workshop required |
| 2000L Mixer | 10-12T/H | 8-10m | 80-90KW | 2-3 Person | 500-600m2 |
| 3000L Mixer | 15-20T/H | 10-14m | 90-100KW | 3-4 Person | 600-800m2 |
| 4000L Mixer | 20-30T/H | 10-14m | 100-120KW | 3-4 Person | 600-800m2 |
| 6000L Mixer | 30-50T/H | 15-20m | 100-120KW | 3-4 Person | 800-1000m2 |
| 10000L Mixer | 50-80T/H | 20-25m | 120-150KW | 3-4 Person | 1000-1200m2 |

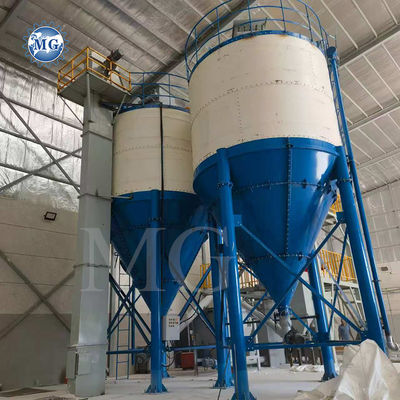

1. Raw Material Storage Silo:
The silo is used to store dry building raw material powder, such as sand, cement, fly ash, slag, calcium carbonate powder and so on. MG standard silos will equips level regulars, air breaking device, e-dust collector, pressure safety valve and complete set of assemble accessories. When material feeding air breaking device can help air exhausting from silo inside, e-dust collector clear the dust on the top; Level regulars can detect the maximum and minimum of material in hopper, so that to remind people feed material timely; Safety valve is to prevent material discharge easily. Material can discharge quickly when it works with screw conveyor.
2. Bucket elevator.
This is a vertical lifting device. Lifting height can reach 20-35m, with high efficient lifting speed and large transport capacity, bucket elevator is widely to used to lifting all kinds of powder or granular material. There are belt type bucket elevator and chain type bucket elevator two kinds for customer choice. Chain bucket elevator can be lift heat material and capacity is higher, lifting height is higher.
3. Automatic weighing system.
This is an automatic batching system that greatly saves manpower and material resources. Machine around equips three S-type sensors, which can get exact value when machine running. Input the weight of each raw materials accordingly to the formulation, high precision, reduce weighing error,save labor cost, improve the output.

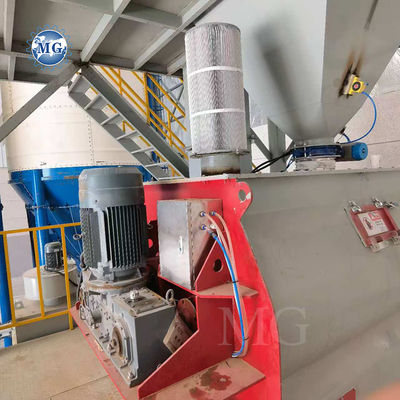

4. Twin shaft agravic paddle mixer.
This twin shaft paddle mixer have the characters of high mixing speed, high uniformity, less power consumption. Materials with large differences in physical properties such as specific gravity, particle size, and shape do not easily segregate when mixed in the mixer. The material discharge is by pneumatic control, material can be discharged within 3-5 seconds.

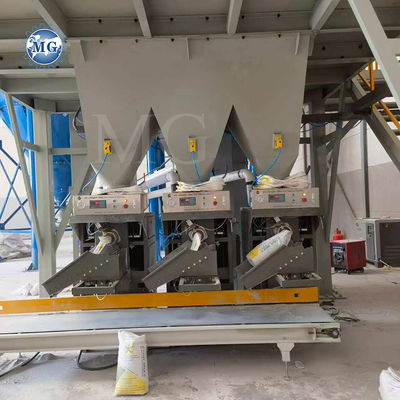

5. Automatic packing machine.
The packing machine use computerized metering devices provides accurate weighing, stable performance and simple operation. And equipped with dust mouth, truly environmentally friendly production. Packing machine is PLC control, more intelligent. It can equip with bag belt conveyor and robot palletizer work.
6. Pulse dust collector.
The Impulse dust collector is mainly designed for dry mortar machine dust collecting, it equip pulse solenoid valve and can realize automatic dust remove. This dust collector is compact in structure, convenient in maintenance, which has the characteristics of large ash removal kinetic energy and high ash removal efficiency. It use special fabric filter dust, well dust collect. Fans,Cloth cylinder and filter assembly as one, can shorten the wind mesh simplify workmanship process.
7. Control cabinet.
PLC control system with characters of High degree of intelligence, automatic control from the Raw material storage silo, screw conveyor, weighing of ingredients to the mixing, packaging and full control of the complete set dry mortar plant, Intelligent and easy operation.
3. Application of Automatic Weighing Dry Mortar Mixing Plant.
Bonding mortar: Masonry mortar, wall and floor tile glue mortar, ceramic tile adhesive mortar, tile joint mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster mortar, inner and outer wall putty mortar, skim coat mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self level mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, anti-crack mortar, mildew-proof mortar, shielding mortar etc.
4.Our company.
1. What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?
A: Semi-automatic dry mortar plant is manual feeding, automatic weighing and packaging and without silos while full automatic type can realize automatic feeding and packaging with silos.
2. How is the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we can assemble and test all the equipment and pack them carefully before delivery. We have export to lots of countries around the world, such as Australia, Malaysia, India, Indonesia, Vietnam, etc. You can rest assured with the quality absolutely.
3. What is your business model? Trading company or factory?
A: We are a factory with our own mechanical design engineers and project design engineers, all our machinery are manufactured by ourselves.
We can provide customized solution design according to customer needs, and full-process services such as early project communication, scheme design, equipment selection, equipment production, site planning, equipment layout, transportation and delivery, installation and commissioning.
4. What equipment and service you can provide?
A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after sales services, life time technical support etc.
5. What is the capacity of your dry mortar plant?
A: We have dry mortar plant capacity from 3-30T/H as your requirement, And also we can customize the machine for you.
